Test Tool

Template: test_tool.json.

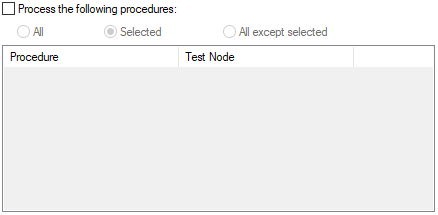

General

Tool: QTE

Settings	Prop	Default	Comment
Process the following procedures	USE_PROCEDURES_LIST	false
	PROCEDURES_LIST_SELECTION_MODE	1	0 (All), 1 (Selected), 2 (All except selected)
	SELECTED_PROCEDURES		list of procedures
	NOT_SELECTED_PROCEDURES		list of procedures

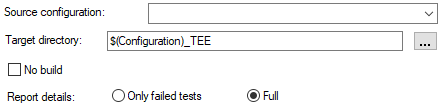

Host Execution

Tool: QTE

Settings	Prop	Default	Comment
Source configuration	TEE_CONF
Target directory	TEE_TARGET_DIR	$(Configuration)_TEE
No build	TEE_NO_BUILD	false
Report details	TEE_DETAILS_FAILED	false

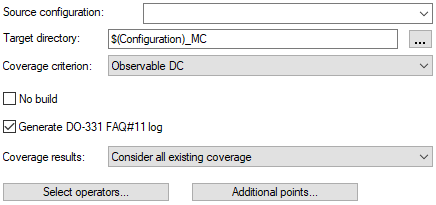

Model Coverage

Tool: QTE

Settings	Prop	Default	Comment
Source configuration	MC_CONF
Target directory	MC_TARGET_DIR	$(Configuration)_MC
Coverage criterion	MC_COVERAGE_CRITERION	ODC	influence, ODC, OMCDC
No build	MC_NO_BUILD	false
Generate DO-331 FAQ#11 log	MC_FAQ11	true
Coverage results	MC_MERGE_PREV_RESULTS	true
Select operators	MC_INSTRUMENTATION_MODE	1	0 (All), 1 (Selected), 2 (All except selected)
	MC_INSTRUMENTED_NODES		list of scade paths
	MC_NOT_INSTRUMENTED_NODES		list of scade paths
Additional points	MC_OBSERVER_LIBS		list of files

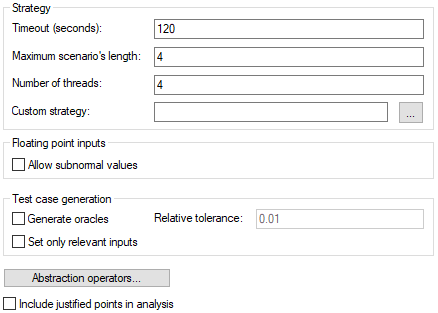

Coverability Analysis

Tool: QTE

Settings	Prop	Default	Comment
Timeout (seconds)	DV_MC_TIMEOUT	120
Maximum scenario length	DV_MC_BMC_DEPTH	4
Number of threads	DV_MC_THREADS	4
Custom strategy	DV_MC_STRATEGY
Allow subnormal values	DV_MC_FPSUBVALUES	false
Generate oracles	DV_MC_ORACLE_GENERATION	false
Relative tolerance	DV_MC_TCGEN_TOOL	0.01
Set only relevant inputs	DV_MC_DONTCARES_REMOVAL	false
Abstraction operators	DV_MC_ABSTRACTION_LIBS
Include justified points in analysis	DV_MC_ANALYZE_NO_J	false

Harness Generation

Tool: QTE

Settings	Prop	Default	Comment
Source configuration	THG_CONF
Source configuration	THG_TARGET_DIR	$(Configuration)_THG
Target test environment	TARGET	TBRUN	TBRUN, RTRT, VCAST, <CUSTOM ID>…

LDRA Test Suite

Tool: TBRUN

Settings	Prop	Default	Comment
User initialization function	USER_INIT

Tool: QTE

Settings	Prop	Default	Comment
	TARGET_TBRUN		summary command-line split as list of tokens: [-user_init <USER_INIT>]

RTRT

Tool: RTRT

Settings	Prop	Default	Comment
Generate C89-based harnesses	C89	false
User initialization function	USER_INIT

Tool: QTE

Settings	Prop	Default	Comment
	TARGET_RTRT		summary command-line split as list of tokens: [-c89] [-user_init <USER_INIT>]

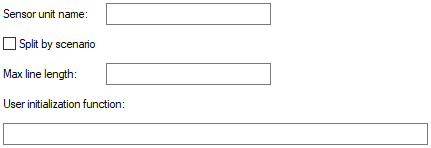

VectorCAST

Tool: VCAST

Settings	Prop	Default	Comment
Sensor unit name	SENSOR_UNIT
Split by scenario	SPLIT	false
Max line length	LINE_LENGTH	0
User initialization function	USER_INIT

Tool: QTE

Settings	Prop	Default	Comment
	TARGET_VCAST		summary command-line split as list of tokens: [-sensort_unit <SENSOR_UNIT>] [-split] [-max_line_length <LINE_LENGTH>] [-user_init <USER_INIT>]
