Reporter

Template: reporter.json.

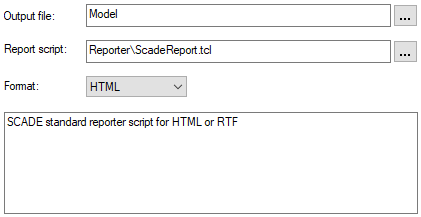

General

Tool: REPORTER

Settings	Prop	Default	Comment
Output file	DOCUMENT	<project name>.<format>
Reporter script	SCRIPT	Reporter/ScadeReport.tcl
Format	FORMAT	html	html, rtf

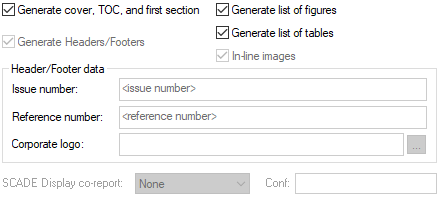

Structure

Tool: REPORTER

Settings	Prop	Default	Comment
Generate cover, TOC, and first section	ReportStructure	true
Generate list of figures	ReportListOfFigures	true
Generate headers/footers	ReportHeaderAndFooter	true
Generate list of tables	ReportListOfTables	true
In-line images	ImagesInLineWithText	true
Issue number	IssueNr	<issue number>
Reference number	ReferenceNr	<reference number>
Corporate logo	CorporateLogo
SCADE Display co-report	SCADEDisplayReport	Complete	Complete, Connection Tables, None
Conf	SCADEDisplayReportConf

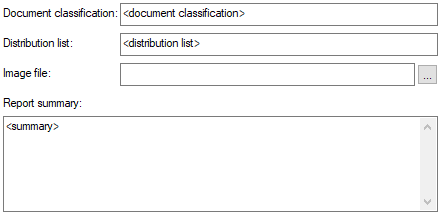

Cover

Tool: REPORTER

Settings	Prop	Default	Comment
Document classification	Classification	<document classification>
Distribution list	Distribution	<distribution list>
Image file	Image
Report summary	Summary	<summary>

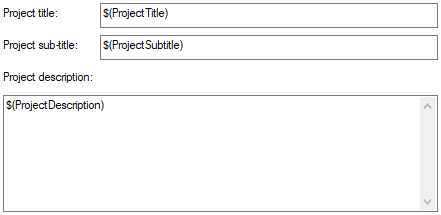

Project Description

Tool: REPORTER

Settings	Prop	Default	Comment
Project title	Title	$(ProjectTitle)
Project sub-title	Subtitle	$(ProjectSubtitle)
Project description	Description	$(ProjectDescription)

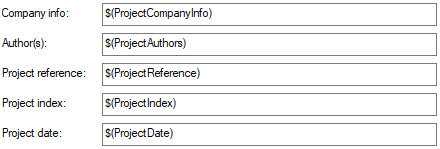

Document

Tool: REPORTER

Settings	Prop	Default	Comment
Company info	CompanyInfo	$(ProjectCompanyInfo)
Authors	Authors	$(ProjectAuthors)
Project reference	Reference	$(ProjectReference)
Project index	Index	$(ProjectIndex)
Project date	Date	$(ProjectDate)

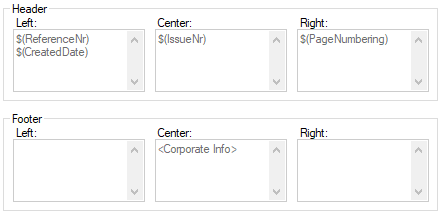

Header/Footer

Tool: REPORTER

Settings	Prop	Default	Comment
Header	Header	$(ReferenceNr)
$(CreatedDate), $(IssueNr), $(PageNumbering)	list of 3 values: left, center, and right
Footer	Footer	, <Corporate Info>x,	list of 3 values: left, center, and right

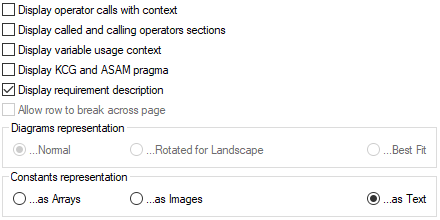

Display

Tool: REPORTER

Settings	Prop	Default	Comment
Display operator calls with context	DisplayCtx	false
Display called and calling operators sections	DisplayCalledAndCalling	false
Display variable usage context	DisplayVarCtx	false
Display KCG and ASAM pragma	DisplayKCGPragma	false
Display requirement description	DisplayReqDescr	true
Allow row to break across page	AllowRowToBreak	false
Diagrams representation	diagDisplayType	Normal	Normal, Land, Fit
Constants representation	cstDisplayType	Array	Array, View, Flat
Rotate landscape images	RotateLandscape	false

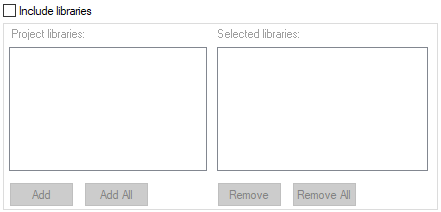

Libraries

Tool: REPORTER

Settings	Prop	Default	Comment
Include libraries	LIBRARIES	false
Selected libraries	LibrariesList		list of files
