Code Generator#

Template: code_generator.json.

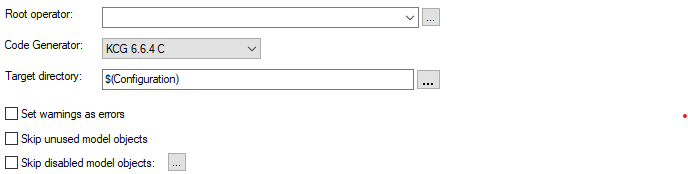

General#

Tool: GENERATOR

Settings	Prop	Default	Comment
Root operator	ROOTNODE		list of scade paths
Code Generator	GENERATOR		ADA QUAL661, ADA QUAL663, C ACG, C MCG, C QUAL661, C QUAL663
Target directory	TARGET_DIR	$(NodeName)_$(CG)
Set warnings as errors	SET_WARNINGS_AS_ERRORS	false
Skip unused model objects	SKIP_UNUSED	false
Skip disabled model objects	SKIP_COMMENTED	false
Select object(s) to comment	COMMENTEDNODES		list of scade paths

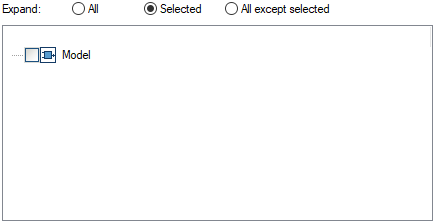

Expansion#

Tool: GENERATOR

Settings	Prop	Default	Comment
Expand	EXPAND_MODE	2	1 (All), 2 (Selected), 3 (All except selected)
Selected	EXPANDED_NODES		list of scade paths
All except selected	NOT_EXPANDED_NODES		list of scade paths

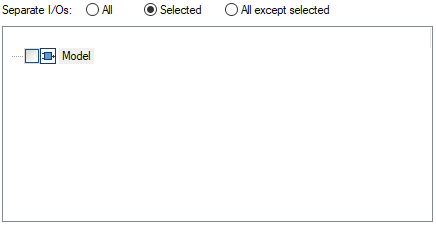

Separate I/Os#

Tool: GENERATOR

Settings	Prop	Default	Comment
Separate I/Os	SEP_IO_MODE	6	1 (All), 6 (Selected), 7 (All except selected)
Selected	SEP_IO_NODES		list of scade paths
All except selected	NO_SEP_IO_NODES		list of scade paths

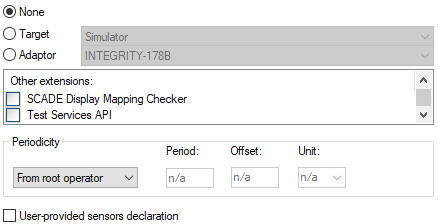

Code Integration#

Tool: GENERATOR

Settings	Prop	Default	Comment
None - Target - Adaptor	TARGET_ADAPTOR
Other extensions	OTHER_EXTENSIONS		list of extension identifiers
Periodicity	PERIODICITY_MODE	ROOTNODE	ROOTNODE, USER, APERIODIC
Period	PERIODICITY_PERIOD	20
Offset	PERIODICITY_OFFSET	0
Unit	PERIODICITY_UNIT	ms
User-provided sensors declaration	USER_SENSORS_DECL	false

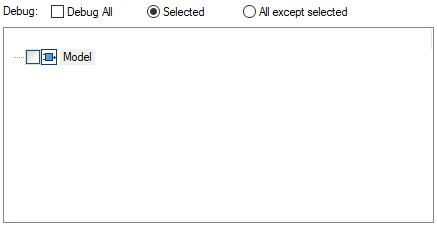

Debug#

Tool: GENERATOR

Settings	Prop	Default	Comment
Debug All	DEBUG	false
	OBSERVE_MODE	0	0 (None), 4 (Selected), 5 (All except selected)
Selected	OBSERVED_NODES		list of scade paths
All except selected	NOT_OBSERVED_NODES		list of scade paths

Optimizations#

Tool: GENERATOR

Settings	Prop	Default	Comment
Local variables as static	STATIC	false
Input threshold	INPUT_THRESHOLD	0

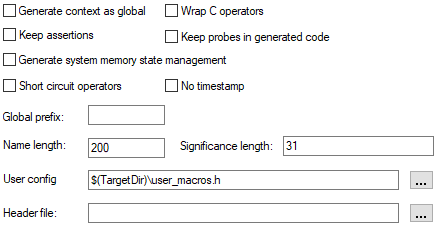

Configuration#

Tool: GENERATOR

Settings	Prop	Default	Comment
Generate context as global	GLOBAL_ROOT_CONTEXT	false
Wrap C operators	WRAP_C_OPS	false
Keep assertions	MACRO_ON_ASSERT	false
Keep probes in generated code	PROBES	false
Generate system memory state management	STATE_VECTOR	false
Short circuit operators	NO_BITWISE	false
No timestamp	NO_TIMESTAMP	false
Global prefix	GLOBALS_PREFIX
Name length	NAME_LENGTH	200
Significance length	SIGNIFICANCE_LENGTH	31
User config	USER_CONFIG
Header file	HEADER
Top-level package	ROOT_PACKAGE
Top-level imported package	IMP_ROOT_PACKAGE
Use type clauses	USE_TYPES		list of type names

Compiler#

Tool: SIMULATOR

Settings	Prop	Default	Comment
Compiler	COMPILER	GNU C
CPU type	CPU_TYPE	win32

The name of the tool for the renaming properties of this tab is the concatenation of the name of the selected compiler and CPU type. For example, the tables hereafter show the most popular ones:

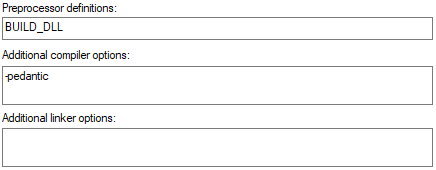

Tool: GNU Cwin32 or GNU Cwin64

Settings	Prop	Default
Preprocessor definitions	PREPROC_DEF	BUILD_DLL
Additional compiler options	ADD_COMP_OPTIONS	-pedantic
Additional linker options	ADD_LINK_OPTIONS

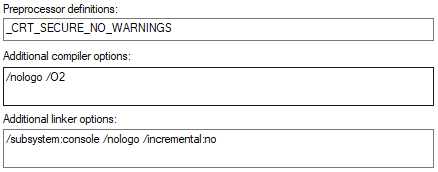

Tool: VS2022win32 or VS2022win64

Settings	Prop	Default
Preprocessor definitions	PREPROC_DEF	_CRT_SECURE_NO_WARNINGS
Additional compiler options	ADD_COMP_OPTIONS	/nologo /O2
Additional linker options	ADD_LINK_OPTIONS	/subsystem:console /nologo /incremental:no

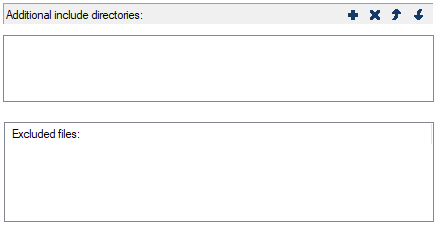

Build#

Tool: COMPILER

Settings	Prop	Default	Comment
Additional include directories	ADD_INCLUDE_DIR		list of directories
Excluded files	IGNORED_FILES		list of files

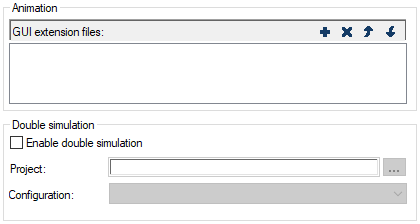

Simulation#

Tool: SSMGUI

Settings	Prop	Default	Comment
GUI extension files	GUIEXTFILE		list of files
Enable double simulation	DBLSIM	false
Project	DBLSIMPRJ
Configuration	DBLSIMCONF

Timing and Stack Analysis Tools#

Tool: GENERATOR

Settings	Prop	Default	Comment
Generate loop bounds annotations	AIT_GENERATE_ANNOTATIONS	true
Generate types copy functions	AIT_GENERATE_COPY_FUNC	false
